Assembling and Dismantling of the Side Runner Frames

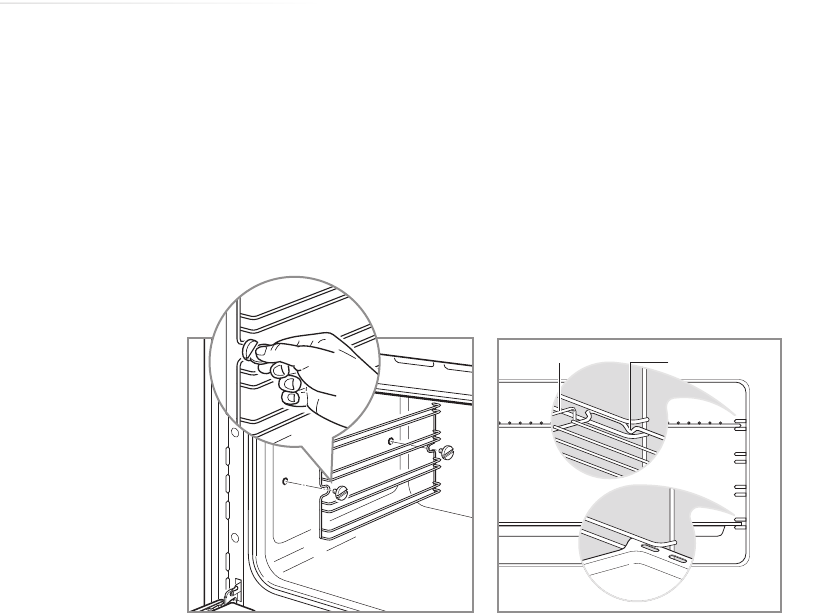

– Assemble the wire racks to the oven walls using the 2 screws (Fig. 5).

– Slide into the guides, the shelf and the tray (Fig. 6). The rack must be fitted so that the safety notch, which stops

it sliding out, faces the inside of the oven; the guard rail shall be at the back.

– To dismantle, operate in reverse order.
